RS485 to Ethernet Mini Converter

Industrial Miniature RS485 to Ethernet Converter

SKU: MD12001
EAN: 5902186334922

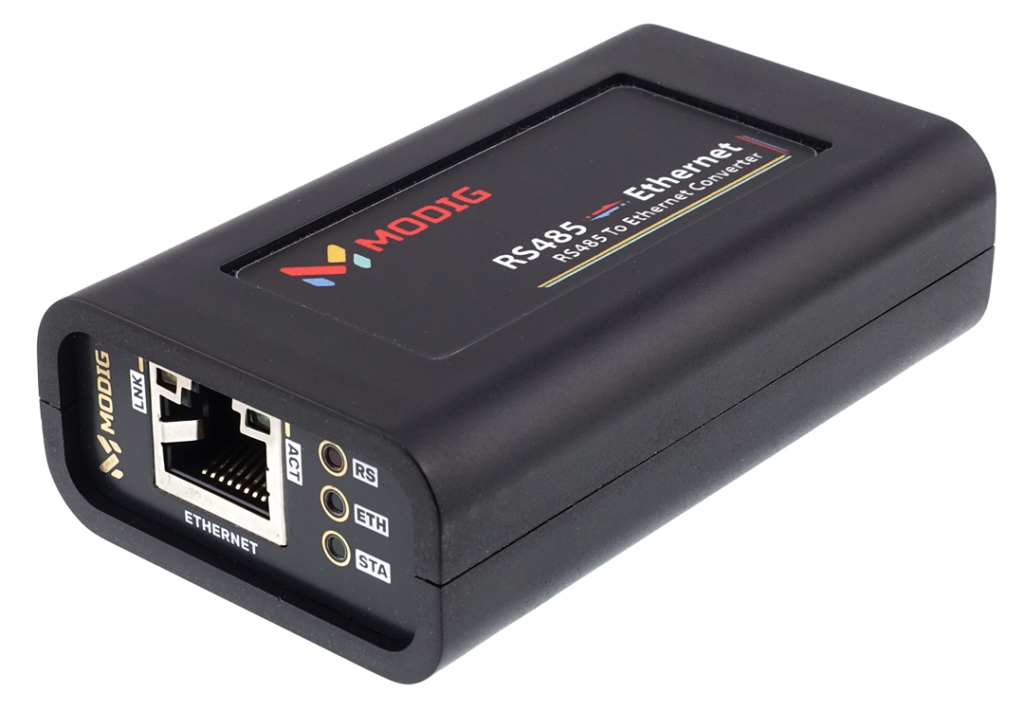

The MODIG RS485 to Ethernet Mini Converter is a versatile and user-friendly gateway that bridges an RS485 bus with an Ethernet network interface. An additional USB-C port provides power to the converter and enables monitoring of its operational parameters. Thanks to its compact design and ergonomic enclosure, the converter can be deployed either as a permanent fixture in installations or used as a portable tool.

Key Features and Specifications

RS485 Interface: Terminals: A+, B-, GND, TERM via Phoenix Contact MC 3.81 mm connector
Termination Resistor: Integrated 120 Ω (configurable via onboard jumper/switch)
RS485 Circuit Protection: 1 kV galvanic isolation and integrated surge protection
RS485 Baud Rate: Supports any custom value from 200 bps to 1,000,000 bps (1 Mbps)
RS485 Serial Parameters:
- Data Bits: 7 / 8
- Parity: None / Even / Odd
- Stop Bits: 1 / 1.5 / 2
- Transmission Mode: Half-Duplex
Network Capacity: Supports up to 64 nodes on the RS485 bus
Buffer Size: Maximum RS485 data frame length of 4 kB (4096 bytes)
Ethernet Interface: RJ45 port, 10/100 Mbps Base-T auto-sensing
Network Addressing: Configurable MAC address; IPv4 support with Static IP or DHCP assignment
Operational Modes: TCP Server, TCP Client, Concurrent UDP, and UDP Broadcast
Device Configuration: Password-protected, built-in Web-UI (HTTP)
Diagnostics: Real-time status readout via USB or Web-UI
Power Supply: 5 VDC @ 0.2 A via USB-C port
Dimensions: 80 x 47 x 24 mm
Operating Temperature Range: -20°C to +50°C
Status Indicators: Diagnostic LEDs
Firmware Upgrade: Supported via USB interface

Applications

The converter enables bidirectional data transmission between an RS485 interface and an Ethernet network. Communication can be established either between multiple MODIG RS485-ETHERNET Mini devices or by interfacing with other hardware that supports TCP and/or UDP protocols.

RS485 data frames are encapsulated and converted into Ethernet TCP/UDP packets. For large data frames (exceeding 1.5 kB, up to a maximum of 4 kB), an automated fragmentation mechanism splits the payload into smaller frames. At the destination device, the original RS485 data frames are reconstructed seamlessly, ensuring completely transparent transmission.

Typical application for the MODIG RS485 to Ethernet Mini Converter:
