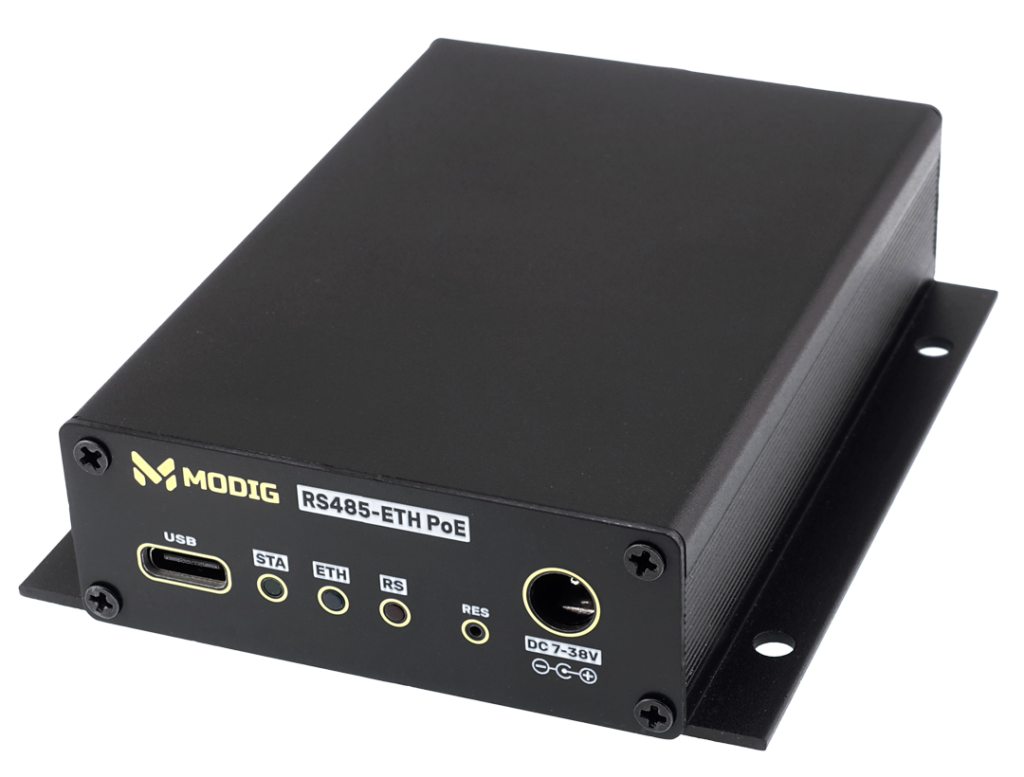

RS485 to Ethernet PoE Converter

Industrial RS485 to Ethernet Converter with PoE Support

SKU: MD12003
EAN: 5902186334939

The MODIG RS485-ETHERNET PoE Converter is a versatile and user-friendly gateway that seamlessly bridges an RS485 bus with an Ethernet network. Equipped with Power over Ethernet (PoE) technology, the device integrates effortlessly into modern network infrastructures, utilizing a single cable for both data transmission and power supply. Its compact design, combined with flexible auxiliary power options via USB or an external DC power supply, allows for seamless deployment across a wide variety of industrial and commercial installations.

Key Features and Specifications

RS485 Interface: A+, B-, GND, and TERM signals; Phoenix Contact MC 3.81 mm pluggable terminal block
Bus Termination: Configurable 120 $\Omega$ termination resistor
RS485 Protection: 1 kV galvanic isolation and surge/overvoltage protection
RS485 Baud Rate: Fully adjustable from 200 bps to 1 Mbps
RS485 Framing Parameters: Data bits: 7/8; Parity: None/Even/Odd; Stop bits: 1/1.5/2; Half-Duplex mode
Maximum Node Capacity: Up to 64 devices connected to the RS485 bus
Maximum Data Frame Size: 4 kB (4096 bytes)
Network Interface: RJ45 port, 10/100 Mbps Ethernet (Full Duplex)
MAC Address: Configurable
IP Addressing: IPv4 (Static IP or DHCP)
Operating Modes: TCP Server / TCP Client; simultaneous UDP or UDP Broadcast
Configuration: Web-based interface (HTTP), password-protected access
Status & Diagnostics: Operational parameters readable via USB or Web interface
PoE Power Supply: Built-in Power over Ethernet circuitry, compliant with IEEE 802.3af/at Class 0 standard
Auxiliary Power Options: 5 VDC / 0.2 A via USB-C port OR 7 to 38 VDC / 0.2 A via external power supply terminal
Enclosure: Aluminum housing, dimensions: 92 mm x 80 mm x 25 mm
Operating Temperature Range: -20°C to +50°C
Status Indicators: Diagnostic LEDs
Firmware Upgrade: Supported via USB interface

Applications

The MODIG RS485-ETHERNET PoE Converter enables bidirectional data transmission between an RS485 interface and an Ethernet network. Communication can be established between two MODIG RS485-ETHERNET PoE devices or by integrating other third-party equipment that supports TCP and/or UDP protocols. The built-in Power over Ethernet (PoE) system significantly simplifies installation within modern network infrastructures.

RS485 data frames are seamlessly converted into Ethernet TCP/UDP packets. For large data payloads (exceeding 1.5 kB, up to a maximum of 4 kB), an automated fragmentation mechanism splits the data into smaller frame sizes. At the destination device, the original RS485 data frames are reconstructed, ensuring completely transparent data transmission.

Typical application of the MODIG RS485-ETHERNET PoE converter:
